  • Lovely Linoleum and Other Historic Floor Coverings – Two Hot Takes

    Linum (“Flax”) and oleum (“oil”) – Fashionable and Affordable

    As a Historic Preservation student at the University of Mary Washington, I’ve grown to appreciate almost all aspects of materiality. Over the past four years, my education has taught me to look closely at the built environment around me.

    Two years ago, I stumbled across a book about mid-century kitchens, which discussed modern flooring’s ugly duckling: linoleum. From this, I developed an appreciation for linoleum and vinyl flooring and an equal obsession with spotting them.

    Most people wouldn’t put Linoleum at the top of their list of favored materials. After all, historically, it’s been labeled as cheap, tacky, and ugly. However, linoleum has been an important part of modern living since the late 19th century. While the patterns most people initially thought of weren’t very attractive (that one red brick style), their initial creation changed the game for durable materials in a household and single-handedly became a hospital favorite.

    Linoleum was first invented by Frederick Walton in Chiswick, England, when he discovered that oxidized linseed oil could replace rubber when mixing the oil with cork and other fibers. This process was sped up by heating the oil with lead and zinc, which formed a sticky paste that would be mixed with sawdust or cork to keep the cloth from becoming tacky. Shortly after receiving a patent in 1864, Walton opened the American Linoleum Manufacturing Company on Staten Island, New York, in 1872, with the nearby town named Linoliumville in its honor.

    Fred Walton, creator of Linoleum

    The genius of linoleum was/is its durability and ability to be mass-produced cheaply. Additionally, the material could be customized using pigments to create virtually any pattern, which aided in its early popularity in homes. Early linoleum was commonly produced in printed, marbled, inlaid, or plain patterns, with these distinct designs often serving as time machines to gauge when the flooring was installed. Putting aside the aesthetics, linoleum is most likely to be seen in high-traffic areas, such as hallways, kitchens, and mudrooms, due to its long-term durability.

    A well-installed linoleum is waterproof and surprisingly antibacterial, which is why, since its invention, linoleum has been commonly used in hospitals. The flooring was also popular among naval vessels in the early twentieth century, with battleships and luxury cruisers taking advantage of the material. In fact, the RMS Titanic used inlaid linoleum flooring for a significant portion of its decks, which can be seen in past photos and even on the sea floor today.

    First Class Smoking Lounge on R.M.S. Titanic with lovely blue and red tiles, ca. 1912
    2004 image of wreckage from the Titanic, showing linoleum floor tiles taken by the Institute for Exploration and Center for Archaeological Oceanography/University of Rhode Island/NOAA Office of Ocean Exploration

    The manufacturing boom of the mid-twentieth century brought modern materials and technologies to the average household, including the popularization of linoleum in common spaces. Kitchens and high-traffic areas would continue to have the flooring material. However, living rooms, eating spaces, and even walls would start to display colorful and flashy patterns. This popularity would be short-lived, as the 1950s brought vinyl flooring, an extremely similar product, but was pushed as a newer and more “fashionable” alternative to linoleum.

    An image of a bedroom from a 1952 advertisement for linoleum flooring

    Despite the initial falloff, linoleum has made a surprising comeback in homes within the last few years. It’s understandable, as per square foot, the material is very affordable and easy to clean, not to mention that rising interest in the conservation of historic homes has led to the preservation and replication of historic linoleum. Most often, the damage to the material features is rips and cracks, which are easily repaired with patching and a fresh coat of sealant.

    I don’t write any of this intending that you agree with me. However, I believe that linoleum reflects the best of modern materiality. It’s low-cost, eco-friendly, durable, and easy to customize, allowing lower-income homes to decorate their spaces economically and colorfully. While spotting linoleum in older buildings may be rare due to being covered with changing fashion trends (we are all familiar with carpet over beautiful hardwood floors), preserving it is just as important as any other part of the built environment.

    Helena Samson

    Fleming Smith Scholar, UMW Class of 2025

    Linoleum’s Forebearer “Fancy Pattern-Cloth” – Eighteenth Century Floorcloths

    The future of home restoration and preservation will involve saving certain building materials, such as wood, stone, brick, and decorative elements, like linoleum. While humble and even ridiculed (you know the pattern), linoleum will eventually be treasured as a lasting historical remnant, helping future preservationists add context and depth to restorations.

    Classic linoleum, everyone seemed to have despite not wanting to admit it.

    Unfortunately, in eighteenth-century historical preservation, we are rarely lucky enough to find samples of the predecessor of linoleum, the floorcloth. The floorcloth was a relatively common floor covering in eighteenth-century Virginia homes. It was made from woven cloth, usually heavy and sturdy, like linen or cotton canvas. This canvas was then stretched, several layers of oil paint applied, and covered in varnish. This floorcloth could be painted in any fashionable design, as seen in John Carwitham’s book published in 1739, with the replica marble being one of the favorites.

    Behold my fancy flooring, m’lady – design plate from John Carwitham’s “Various kinds of floor decorations”, 1739
    Marble floorcloth in entryway at Kenmore. The floorcloth was made in 1980 and has been stripped and repainted once…it is holding up nicely.

    Like linoleum, floorcloth was prized because it was customizable, durable, easily cleaned, and repairable. It could also be cut down and used in other areas like kitchens or closets after it lost its fashionability or was replaced with carpet. It was so versatile that it basically reused itself out of existence.

    While no known complete examples of eighteenth-century floorcloths exist, bits and pieces have been found, offering insight into their construction and functionality in the home. Coincidentally, here at Kenmore, we found remnants of a floorcloth under the floorboards in the attic during a period of restoration in 1989. Small samples from the remnants were taken for analysis:

    Floorcloth remnant found in Kenmore’s attic
    Floorcloth remnant found in Kenmore’s attic

    Base layer – yellow preparatory layers of lead white and yellow ochre ground in linseed oil. The uneven distribution of the large, clumped pigments suggests it was hand-ground paint.

    Black paint is found in the third layer above the ground coatings with remnants of plant resin varnish, followed by a green design layer. This could mean the black paint was the original design, and it was repainted after varnish and the green design were put on top.

    Green-painted areas – made up of white lead, Prussian blue, yellow ochre, and calcium carbonate.

    White paint – composed primarily of white lead and calcium carbonate

    We can draw a few conclusions from this paint analysis. One, the floorcloth was well used but eventually worked its way down the list of favored household furnishings, whether from wear and tear or fashionability. Either way, it was ultimately rolled up and stored out of sight, and lucky for us, forgotten.

    Second, the white paint sample did not contain zinc white, which was used after 1840, and the green paint sample did not contain chrome green, which means it was likely produced before 1816, when chrome yellow pigments were commercially available. So, while we can’t verify that it was a Lewis family floorcloth, it is a very early example of the floor covering. It inspired the floorcloth reproduced for Fielding’s office in Kenmore, which you can read about in our previous post, “What Was Old Is New Again”.

    Beautiful reproduction floorcloth hand-painted by Black Dog Gallery, Yorktown.

    Today, thanks to linoleum, we can choose affordable, durable, and even fashionable flooring materials. Linoleum is the evolution of floorcloths with similar goals and functionality. However, while floorcloths didn’t usually survive, linoleum will follow us through history and deserves to be preserved even if it leads to awkward questions about style and décor.

    Oh, there will be questions.

     Heather Baldus

    Collections Manager

    Bibliography

    Kaldewei, G. (2000). Linoleum: History, design, Architecture, 1882-2000. Hatje Cantz ; Distribution in the US, DAP, Distributed Art Publishers.

    Garcia, K. (2023, December 6). Caring for 100-year old linoleum. Tenement Museum. https://www.tenement.org/blog/fun-with-linoleum-no-really/

    Houseman, C. (2020, September 11). Titanic’s linoleum. Encyclopedia Titanica Message Board. https://www.encyclopedia-titanica.org/community/threads/titanics-linoleum.52676/

    NPS. (n.d.). https://www.nps.gov/orgs/1739/upload/treatment-guidelines-2017-part2-reconstruction-restoration.pdf

    Landreau, A.N. (1976). America underfoot: A history of floor coverings from colonial times to the present. Published for the Smithsonian Institution Traveling Exhibition Service by the Smithsonian Institution Press.

    Weissman, J.R., & Lavitt, W. (1994). Labors of love: America’s textiles and Needlework, 1650-1930. Wings Book: Distributed by Outlet Book Co.

    Buck, Susan L. Floorcloth Fragments Cross-Section Microscopy Report, Kenmore, Fredericksburg, Virginia. (2006)

  • Building George’s House: Why Red? How We Picked the Paint

    A few weeks ago at George Washington’s Ferry Farm, painters finished painting the exterior of the Washington house.  They used a red color known as “Spanish brown.” The paint is linseed oil-based and actually behaves more like a stain.  Modern oil-based paint can, in a way, be thought of as a plastic that laying atop the surface and coating the wood.  The historic pigment we used actually seeps into the wood itself and essentially stains the wood the deep red.

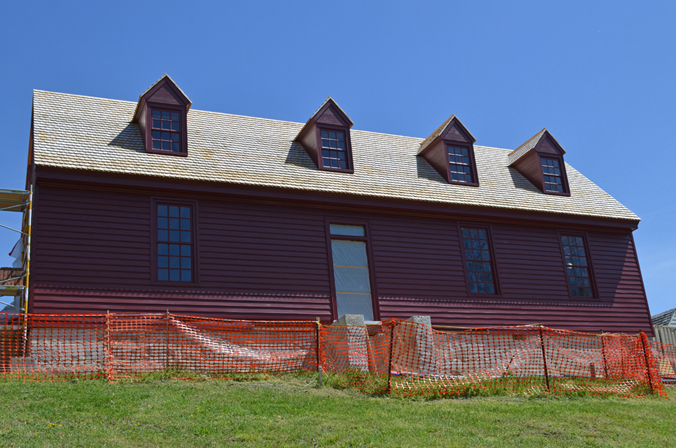

    Washington House without Scaffolding
    River-facing side of the Washington house at Ferry Farm.



    House Painting (8)
    Falling snow against the new paint on the Washington house.

    In the 18th century, the pigment came from clay mixed with red lead, an iron oxide. The paint was “made by grinding the earth into a very fine powered consistency that would then be added to the linseed oil and turpentine – the content of the dirt and the amount used ultimately determined the color” which could range from “burnt orange through reds and into browns.”

    Why did we choose Spanish brown as the Washington house’s exterior paint?  Well, we have evidence, both documentary and archaeologically, that suggests the original Washington home was this very color.

    First, our archaeologists recovered fragments of plaster with Spanish brown on them, which demonstrates the color was available and used at Ferry Farm.

    Second, Mason Locke Weems wrote “The house in which he lived is still to be seen. It lifts its low and modest front of faded red, over the turbid waters of the Rappahannock.” (Page 11)  While Weems included myths about Washington, his biography was published in 1800 meaning the house could certainly have still been standing for either him to visit or for persons who had seen the house to describe it too him.  We know the house became a ruin just after 1830.

    Finally, when paint analysis of colonial houses is done, Spanish brown is frequently encountered.  The color was extremely popular during the 1700s.  Here in Virginia paint analysis found it used at William Randolph’s Tuckahoe and in Williamsburg at Nathaniel Walthoe’s storehouse, Bruton Parish Church, and, most notably, the Peyton Randolph House.[1]

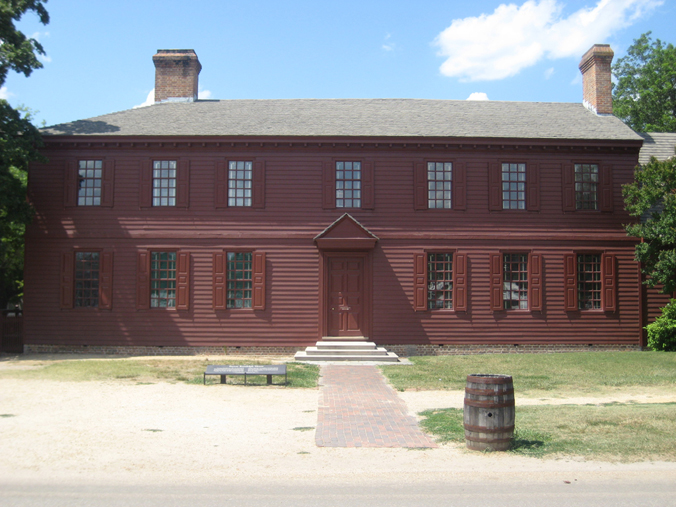

    Peyton Randolph House
    The Peyton Randolph House in Colonial Williamsburg. Credit: Wikipedia / Jrcla2

    Spanish brown was also popular beyond Virginia.  It adorned the Palmer-Marsh House in North Carolina and Sotterley Plantation in Maryland.[2]  A survey of advertisements for Rhode Island paint shops between 1760 and 1819 found it offered “in nearly every ad.”

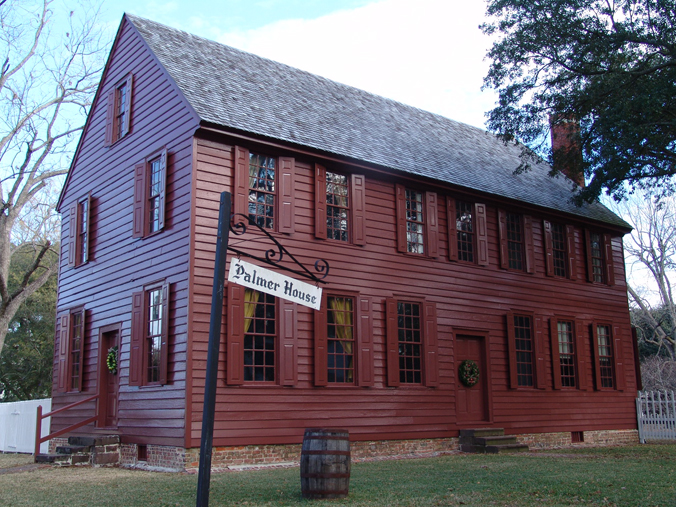

    Palmer Marsh House
    Palmer Marsh House in Bath, North Carolina. Credit: North Carolina Historic Sites

    Spanish brown was “the ubiquitous color of colonial America” and “was cheap, probably the cheapest available – dirt cheap because it was dirt.”  Its inexpensiveness did not prevent it from being popular among the gentry class.  If possible, the Washingtons and their fellow gentry would have preferred homes of brick that symbolized “dominance, prosperity, and social status.” With this desire in mind, “red paint in its various shades can be seen as an attempt to give otherwise well-finished frame buildings the same aura of permanence that brickwork offered.”[3]

    Zac Cunningham
    Manager of Educational Programs

    [1] Susan Buck and Willie Graham, Chap. 15 “Paint” in The Chesapeake House: Architectural Investigation by Colonial Williamsburg, ed. by Cary Carson and Carl R. Lounsbury, Raleigh, NC: University of North Carolina Press, 364.

    [2] Ibid.

    [3] Ibid.
